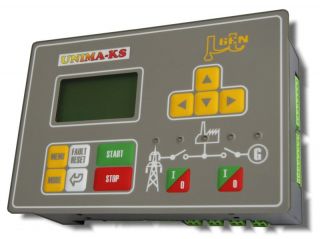

Control system MicroGEN AP

Small control system for co–generating units and other motor–generator sets with graphic display 128x64 points, wide possibilities of control, communication and configurability.

It supports all modes of cooperation with network P (parallel), I (island), E (emergency), P+I, P+E, separation of active power (in mode P) and both active and reactive powers (in mode I) between several machines without necessity of governing control system. It enables both manual and automatic mode of control, copying of object consumption etc.

Firmware of control systems includes complete algorithms for control of co-generatinng (control of operation parameters, regulation, phasing, back phasing). Algorithms of control systems are possible to adjust on custom level by functions according to installation specifications. By mapping it is possible to configure both analog and binary inputs and outputs. Control system is possible to monitor, calibrate, program and develop single adjustments in algorithm after its connection to PC by program ManagerAP.

Basic features:

Controller display language selectable by parameter (Czech, English, Russian, Hungarian, Polish)
Wide range supply 10÷33DC or 8÷24AC
Real time
Measurement of
rpm (option to read from speed governor USC)
Direct control of voltage regulator (galvanic separated output -10÷10V)
Control of speed governor
(output -10÷10V) or direct control of speed flap by Woodward actuator and internal PID regulator
Gas-air mix regulator

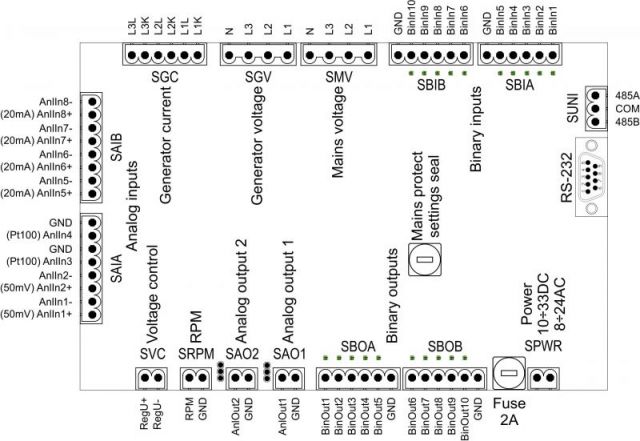

2x analog output (selectable 10V or 20mA)
8x analog input (4xPt100, 2x-50÷50mV, 2x-20÷20mA)
10x binary input with line control
10x binary output (2x possibility of PWM output)
Measurement 6xU, 3xI, active and reactive power of generator
Measurement of produced energy, configurable pulse scalers (electrometer, gas - meter...)
State history of all values, before an fault is also stored previous 4min of run every 5s, history of all values 20hours back every 5s of run (the graphs after connection is displayed not only after connection time, but also us read-up back)
Configurability (mapping) of both analog and binary outputs and inputs. Easy mapping of input signals not only on physical device terminals, but also to inputs of IO modules or other devices.
Possibility to develop single algorithms by transparent PLC - configurable functions (logical signal boxes, comparators, analog summation, countdown, analog memories, switches, PD and PID regulators, 3-way valve controls
etc.)
Integrated network protections (possibility to seal setup or print mains settings protocol)
Integrated internet-bridge (communication with
PC through network by protocol UDP, TCP)
Communication through RS-232, RS-485 (UnimaBUS)
Data communication with
USC
(speed governor
Unima),
UIS
(ignition Unima) and
UVR
(voltage regilator
unima)
Possibility to send SMS (after connection of GSM modem to
RS-232) or e-mails (by integrated IB) during malfunction
Possibility to cotrol CU via SMS messages (start, stop, fault reset, mode settings, request for back SMS with controller state information etc.)
Programmable in application (easy upgrade of FW through RS-232)
Configuration of system from
PC in custom comfortable and intuitive service SW
Possibility of
expansion modules
(inputs, outputs) connection
Firmware for CHP (cogeneration units), MVE (small hydroenergy), SYS (synchromization unit only)
