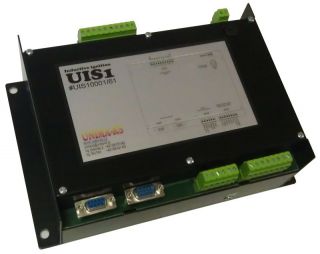

Inductive electronic ignition UIS1

Inductive electronic ignition for smaller 3÷8 cylinder engines, possibility of pre-ignition adjustment, parametrization and diagnostics. Specifications details here.

Basic features:

• Communication through RS-232 (diagnostics and adjustment by service program Manager), RS-485 (for cooperation
• with control systems UNIMA)
• Supplying voltage 11÷15V
• Coils count
• 3÷8 (dual mode)
• Detection of unburned ignition (charging of inductive coil)
• Intelligent and very easy adjustment of output pre – ignition by stroboscope
• Pre-ignition correction by control system
• Number of teeth for reading rotations
• 2÷254 (both simple - sensor and double – sensor reading)
• 2x digital output
• 2x digital input
• 2x analog input - reset, crank (SW configurable, Hall sensor unit / Induction sensor),
• signal active edge selection
• Supplying voltage for Hall sensor unit 5V,100mA
• Output signal for speed measurement in controll system (processed crank signal)
• Test-mode
• Integrated tester (oscilloscope)
