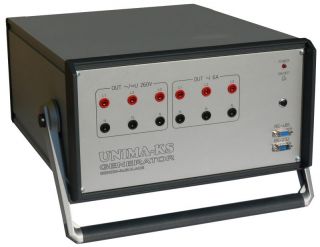

Programmable generator (calibrator) 230V, 5A

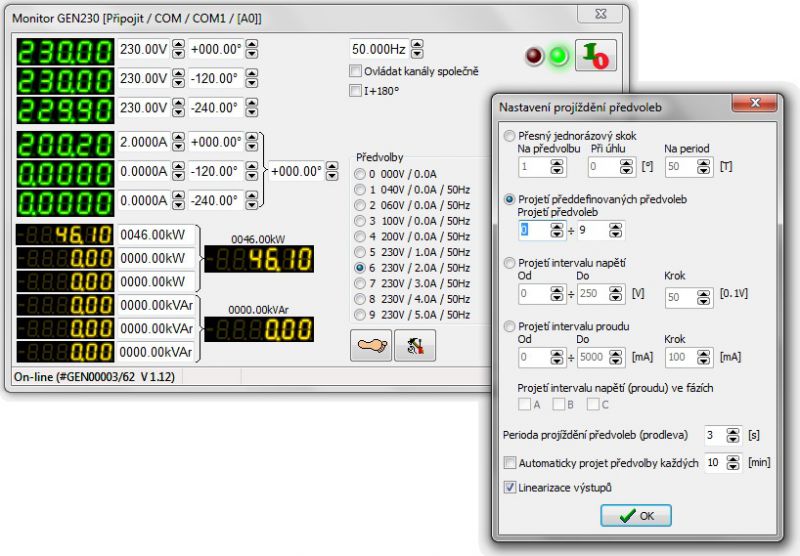

GEN230-3u3i-X-ADE is highly accurate generator of AC Voltage 0÷260V (three phases) and AC current from 0÷6.5A (three phases) with the measurement of voltage, current and power. It serves as a network simulator and as calibrator of measurement devices. The device is controlled via a PC service program Manager.
Using a set of "alternative" parameters can simulate various failures on the network (short-term change of voltage, current, phase) and measure e.g. reaction time of  network protections.

Basic features:

• 16-bits DDS (16-bit D/A convertor of shape and 16-bit D/A convertor of magnitude)
• Voltage generating range 0÷260V, setting step 0.01V (Iout=300mA, Pmax=78W)
• Current generating range 0÷6.5A, setting step 0.0001A (Pmax=20W)
• Accuracy of settings u(i) 0.1% from range
• Accuracy of measuring u(i) 0.2% from range
• Independent settings of phase in each channel, setting step 0.02°
• Frequency range 30÷65Hz, setting step 0.001Hz
• 10 sets of parameters
• Possibility of a precise switch between two sets for the defined period count in a given phase
• External jump executing, reaction time measurement
• RS-232, RS-485 communications
