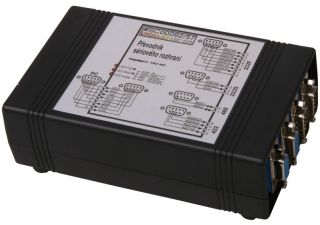

Serial converter

Galvanic - separated converter of serial interface RS-232 to interface RS-232/RS-485/RS-422. Applicable for computer serial interface protection during connection to control systems and circuits. Adjustment of communication channel, speed and other features is performed simply by terminal. Converter is possible to cascade - connect (to one of output RS-232 connect another converter) and thereby it is possible to increase number of output channels. Cooperation with converter is assisted by service program Manager.

Basic features:

• External supply (adapter 230VAC/9VAC)
• Selectable speed of communication up to 115,2 kbd
• Input 1xRS-232, output 2xRS-232, RS-485, RS-422
• speed conversion
• Processor inter - memory
• Galvanic - separated

Other possibilities:

By this converter it is possible for example to emulate function of terminals Woodward (rotation regulator) and EIS (ignition Caterpillar). Those terminals assist for adjustment and diagnostic of these equipments and bring out other possibilities (selected value process record into graphs, backup of parameters into disc).
